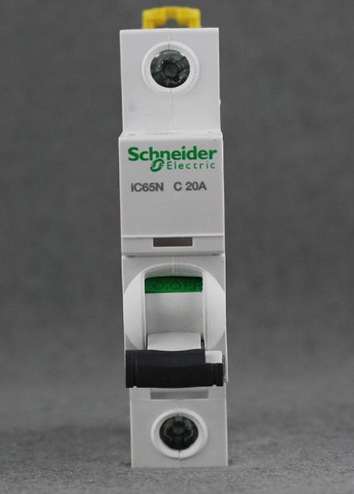

Schneider IC65N C20A series miniature residual current circuit breakers

Schneider IC65N C20A series miniature residual current circuit breakers (RCCBs) are electrical devices integrating overload, short-circuit protection, and residual current protection functions, suitable for residential, commercial, and industrial scenarios. The key information is organized as follows:

Schneider LRD08C thermal relay

 I. Product Composition and Model Description

1. **Basic Model IC65N C20A*Schneider low-voltage molded case circuit breaker EZD100B3015MAN*

   - Belongs to Schneider's IC65N series of miniature circuit breakers (MCBs). **C20A** indicates a rated current of 20A, with a **Type C tripping curve** (suitable for lighting and general power distribution loads, with overload protection sensitivity of 5-10 times the rated current).

   - Pole options: 1P, 2P, 3P, 4P. The default breaking capacity is **6kA (N type)**, while some models can reach 10kA (H type) or 15kA (L type).

 Schneider low-voltage molded case circuit breaker

2. **Implementation of Residual Current Protection Function**

   - **Integrated model**: Achieved through **Vigi iC65 series residual current accessories**, such as **Vigi iC65 2P C20A**, which directly provides residual current protection with a rated residual current operating current of **30mA (AC type)**, suitable for AC circuits.

   - **Accessory combination**: The IC65N circuit breaker can be paired with **Vigi VE (electronic) or VM (electromagnetic) accessories**, requiring on-site assembly. The first disassembly leaves visible damage to ensure safety.

Schneider-MCCB-NSX250F-4P-250A

 II. Core Parameters and Performance

1. **Electrical Parameters**

   - **Rated voltage**: 230V/400V (single-phase/three-phase).

   - **Residual current operating characteristics**: AC type, capable of detecting power-frequency sinusoidal residual current, with an operating time ≤ 0.1 seconds.

   - **Pole selection*Schneider Circuit Breakers Price*:

     - **2P**: Protects both live and neutral wires, suitable for single-phase circuits requiring comprehensive residual current protection (e.g., home distribution boxes).

     - **1P+N**: Only protects the live wire, but the neutral wire can be indirectly protected via accessories, offering a more compact design.

2. **Safety and Certifications*Chint's NB1-63DC series DC circuit breakers Price*

   - Complies with China's GB16917 standard and holds CCC certification, providing triple protection against overload, short circuit, and residual current.

   - The breaking capacity meets the needs of residential and light industrial applications, with 6kA (N type) addressing most short-circuit scenarios.

 III. Application Scenarios and Installation Recommendations

1. **Typical Applications**

   - **Home power distribution**: The 2P C20A model is suitable for 20A load circuits such as air conditioners and electric water heaters, while protecting personal safety.

   - **Commercial and industrial use**: 3P/4P models can be used for three-phase equipment, such as small motors or branch circuits of distribution boxes.

2. **Installation Notes**

   - **Accessory installation**: Vigi accessories must align with the lower terminals of the circuit breaker, fixed with a yellow card after fastening to ensure reliable electrical connections.

   - **Wiring specifications**: Connect the power supply to the inlet terminal and the load to the outlet terminal. The neutral wire must be connected to a dedicated terminal to avoid reverse connection.

   - **Environmental requirements**: Installation temperature range: -5°C to +40°C, altitude ≤ 2000 meters. Avoid humid or corrosive environments.

IV. Purchase and Authenticity Verification

1. **Channel Recommendations**

   - Contact Schneider's official authorized dealers via WhatsApp: 0086-13811255435.

2. **Price Reference**

   - **Integrated model**: The price of Vigi iC65 2P C20A is approximately 135-411 RMB, subject to the number of poles and accessory configurations.

   - **Accessory combination**: IC65N circuit breaker (approx. 30-80 RMB) + Vigi accessories (approx. 100-200 RMB), with a total cost slightly lower than the integrated model.

 V. FAQ

1. **Q: Can IC65N C20A be used as an RCCB alone?**

   A: No. It must be paired with Vigi accessories or choose the Vigi iC65 model with integrated residual current protection.

2. **Q: How to distinguish between AC-type and A-type RCCBs?**

   A: AC-type detects only AC residual current, suitable for purely resistive loads; A-type can detect residual current with pulsating DC (e.g., frequency converter equipment). Choose based on the load type.

3. **Q: How to test the residual current function after installation?**

   A: Press the "TEST" button on the accessory. The circuit breaker should trip immediately; otherwise, check the wiring or replace the device.

 VI. Summary

Schneider's IC65N C20A series achieves residual current protection through **Vigi accessories or integrated models**, featuring high reliability and flexibility for various scenarios. When selecting, comprehensively consider the load type, pole requirements, and installation environment. Prioritize purchasing genuine products through official channels to ensure safety and performance standards.
