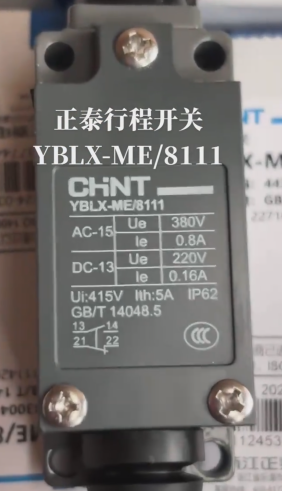

Chint travel switch YBLX-ME/8111

The Chint travel switch YBLX-ME/8111 is a direct-acting limit switch suitable for industrial automation control. It adopts a direct-pressure plunger operation mode and has the following core features:

The specific parameters of the Chint travel switch YBLX-ME/8111 are as follows:

1. Electrical Parameters

- **Rated Voltage**: 380V AC (AC-15 load) or 220V DC (DC-13 load)

- **Rated Current**: 10A under AC-15 load, 0.16A under DC-13 load

- **Contact Type**: 1 normally open + 1 normally closed (1NO + 1NC)

- **Electrical Life**: No less than 10,000 cycles under normal load

- **Rated Insulation Voltage*Chint NXR series thermal overload relays price*: 415V

- **Impulse Withstand Voltage*CHINT circuit breaker price*: 2.5kV

- **Operation Frequency**: Mechanical operation frequency 120 times/min, electrical operation frequency 30 times/min

 2. Mechanical Performance

- **Operation Mode*CHINT surge protector price*: Direct-pressure plunger type

- **Actuating Force**: 15N

- **Actuating Stroke**: 5mm, over-travel 2mm, total stroke 7mm

- **Protection Level**: IP62 (dust-proof and splash-proof)

- **Operating Temperature**: -5°C ~ +40°C

- **Installation Category**: Category II

- **Pollution Degree**: Level 3

3. Certifications and Standards

- **Domestic Certification**: China CCC Certification

- **International Standards**: Compliant with GB/T 14048.5 and IEC 60947-5-1

4. Physical Characteristics

- **Housing Material**: Aluminum alloy

- **Operating Head Material**: Silver contacts

- **Weight**: Approximately 200g (estimated based on similar series products)

- **Overall Dimensions**: Approximately 73mm×40mm×28.5mm (length×width×height, reference drawings of similar series products)

- **Mounting Hole Size**: 2×φ12mm, spacing 50mm

5. Environmental Adaptability

- **Altitude**: ≤2000 meters

- **Humidity Conditions**: Relative humidity ≤50% at maximum temperature +40°C; higher humidity allowed at lower temperatures (e.g., humidity ≤90% at 20°C)

- **Vibration Requirements**: Installation location should be free from significant vibration

 6. Precautions

- **Over-travel Limitation**: Total stroke shall not exceed 7mm to avoid internal structure damage

- **Operation Speed**: Extremely slow or fast operation may cause contact instability or mechanism damage; use at rated frequency is recommended

- **Load Limitation**: Not recommended for micro-loads (e.g., voltage ≤100V), which may reduce contact reliability

 2. Application Scenarios

This switch is mainly used for **stroke control of moving mechanisms**, such as:

- Limit protection for machine tools and elevators

- Position detection in motor control circuits

- Program control in automated production lines

3. Installation and Usage Notes

1. **Installation Requirements**

   - Must be installed vertically to avoid internal structure damage caused by excessive over-travel (total stroke ≤7mm)

   - Refer to the product manual for fixing hole dimensions; use of standard wires for connection is recommended

2. **Environmental Conditions**

   - Avoid use in flammable, explosive, or corrosive environments

   - Installation location should be free from significant vibration and at an altitude not exceeding 2000 meters

4. Purchase and Market Information

**International Market**

   - Current search results do not clarify whether this model has passed UL certification or is sold in the U.S. market

   - Chint Power has photovoltaic projects in the U.S., but local supply information for travel switches needs further confirmation

5. Technical Documentation and Support

- Chint's official website provides the 2025 product catalog, 3D models, and user manuals for download and reference

- Customer Hotline (WhatsApp): +86 13811255435 (Manual service hours: 08:00-19:00)

6. Alternative Models

For other operation modes, refer to products in the same series:

- **YBLX-ME/8108**: Adjustable roller rotation type, actuating force 12N

- **YBLX-ME/8112**: Direct-pressure plunger with roller, actuating force 20N

It is recommended to select appropriate models based on specific application requirements and purchase through formal channels to ensure genuine products and after-sales support. For compliance in the U.S. market, directly contact Chint's official team or local distributors to confirm certifications and supply status.
