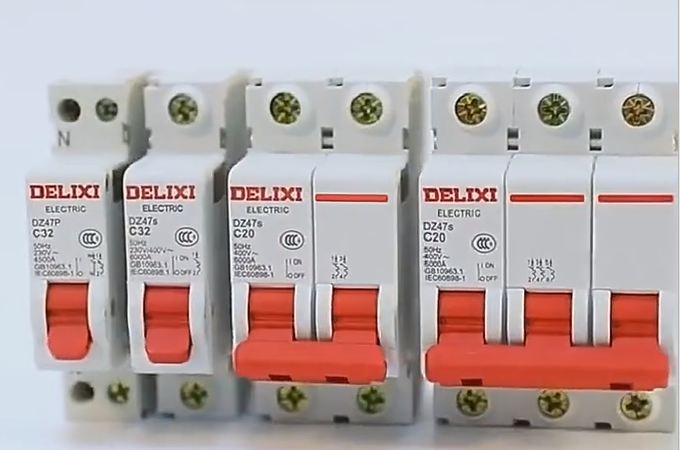

Delixi Electric's DZ47S series circuit breaker

Delixi Electric's DZ47S series circuit breaker is a miniature circuit breaker (MCB) specially designed for low-voltage terminal power distribution systems. It features overload protection, short-circuit protection, and isolation functions, and is widely used in residential, commercial, and industrial fields. The following is a summary of its core information:

I. Product Positioning and Upgraded Features

DZ47S is an upgraded version of Delixi's classic DZ47 series, with the main improvements including:

- **Enhanced breaking capacity**: The entire series has a unified breaking capacity of 6kA, which is better than the 4.5kA specification of some competitors and can cut off short-circuit current more reliably.

- **Expanded pole numbers**: Two new combinations of 1P+N and 3P+N are added to cover single-phase and three-phase power distribution scenarios, meeting different load requirements.

- **Optimized tripping curve**: It provides Type C (instantaneous tripping at 5-10 times the rated current, suitable for lighting) and Type D (10-14 times, suitable for impact loads such as motors), with a wider range of adaptation.

II. Key Technical Parameters

1. **Electrical specifications**:

   - Rated voltage: AC 230V/400V (1P+N is 230V, 2P/3P/4P is 400V)

   - Rated current: 1-63A, covering common load ranges

   - Breaking capacity: 6kA (consistent for the entire series)

   - Frequency: 50Hz

   - Tripping characteristics: Type C (for general loads), Type D (for power loads)

   - Pole numbers: 1P, 1P+N, 2P, 3P, 3P+N, 4P

2. **Mechanical performance**:

   - Mechanical life: 20,000 times

   - Electrical life: 10,000 times

   - Protection grade: IP20 (for direct installation)/IP40 (inside distribution boxes)

   - Operating temperature: -35°C~+70°C

3. **Certifications and standards**:

   - Complies with China's CCC certification, IEC 60898-1 (household circuit breakers), and IEC 60947-2 (low-voltage switchgear) standards

   - Some models have passed CB certification, supporting access to international markets

 III. Design and Installation Features

1. **Structural design**:

   - Compact size: The width is only 18mm per pole (1P), saving space in the distribution box

   - Red handle: A标志性 design with clear status indication and comfortable operation feel

   - Flame-retardant shell: Made of V0-class flame-retardant material, resistant to high temperatures (passes the 750°C glow wire test)

   - Modular accessories: Supports extended functions such as OF auxiliary contacts, SD alarm contacts, and MX shunt release

2. **Installation method**:

   - Standard 35mm DIN rail installation, supporting upper and lower incoming lines

   - Terminal blocks: U-shaped design, maximum support for 25mm² wires (63A model)

   - Torque requirement: 2.5N·m (1-63A) to ensure connection reliability

 IV. Typical Application Scenarios

1. **Residential power distribution**:

   - Lighting circuits (Type C)

   - Socket circuits (Type C)

   - Small household appliances (such as air conditioners, water heaters)

2. **Commercial and light industry**:

   - Office power distribution systems

   - Small motor control (Type D, such as fans, water pumps)

   - Main incoming line protection for distribution boxes

3. **Special scenarios**:

   - Temporary power supply places (such as construction sites)

   - Occasions with high requirements for breaking capacity (such as areas with 6kA short-circuit current risks)

V. Comparison with Other Models

1. **Comparison with the basic DZ47 version**:

   - DZ47S adds 1P+N and 3P+N pole numbers, while DZ47 only has 1P, 2P, 3P, and 4P

   - The breaking capacity of DZ47S is uniformly 6kA, while some models of DZ47 are 4.5kA

   - DZ47S has a more modern appearance design and stronger accessory compatibility

2. **Comparison with DZ47LE leakage type**:

   - DZ47SLE integrates leakage protection function (residual operating current 30/50/100mA)

   - DZ47SLE is slightly larger in size (with an added leakage module) and has a higher price

   - The model should be selected according to whether leakage protection is needed

 VI. Selection and Usage Suggestions

1. **Key points for selection**:

   - **Rated current**: Calculate according to the load, and it is recommended to reserve a 20% margin

   - **Tripping curve**: Choose Type C for lighting/sockets and Type D for motors

   - **Pole numbers**: Use 1P/1P+N for single-phase loads and 3P/4P for three-phase loads

   - **Breaking capacity**: It needs to match the short-circuit current level of the installation environment (it is recommended to be ≥6kA)

2. **sage precautions**:

   - Avoid overload operation and check temperature rise regularly

   - Ensure firm wiring and meet the torque requirements during installation

   - In humid environments, it is necessary to cooperate with the sealing measures of the distribution box

   - Disconnect the upper-level power supply when replacing to ensure safety

VII. Market and Purchase Information

1. **Applicable markets**:

   - Mainly oriented to China and Southeast Asian markets, some models can be exported through CB certification

   - Attention for the North American market: DZ47S has not obtained UL certification, it is recommended to choose Delixi's CDB6i series (compliant with UL 489 standard)

2. **Purchase channels**:

   - International procurement: Through Delixi's overseas partners, Whatsapp: 0086-13811255435

VIII. Technical Support and After-sales Service

- Provide technical materials such as product manuals, installation guides, and selection software

- Warranty period: Usually 1 year (subject to purchase terms)

- After-sales support: Whatsapp: 0086-13811255435

- Accessory compatibility: Compatible with DZ47 series accessories, enabling flexible function expansion

Summary

Delixi's DZ47S series circuit breakers have become the mainstream choice in the low-voltage power distribution field due to their high cost performance, reliable performance, and flexible configuration. With the 6kA breaking capacity of the entire series, rich pole number combinations, and modular design, they can meet the diverse needs from residential to industrial fields. For China and markets compatible with IEC standards, DZ47S is an economical and practical choice; North American users need to pay attention to UL-certified models. When selecting models, it is necessary to comprehensively consider the load characteristics, installation environment, and budget, and consult professional electrical engineers if necessary.
