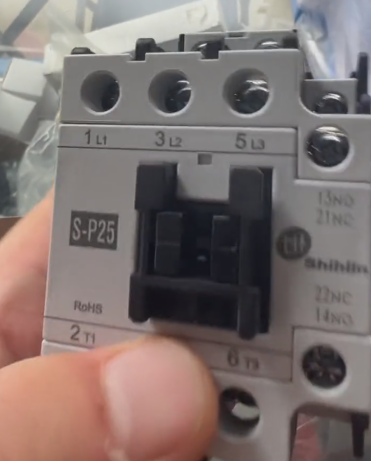

Shihlin Electric S-P25 AC Contactor

   The S-P25 AC Contactor from Shihlin Electric is a core component specifically designed for industrial control. It is suitable for motor starting, power transmission and distribution systems, and power control of various mechanical equipment. Below is its key information and application guide:

 I. Core Technical Parameters

1. Rated Load Capacity

- **Voltage Range**: Covers 220-240V (AC3 class) and 380-440V (AC3 class), with corresponding powers of 6.5kW/8.5HP (220V) and 12kW/16HP (380V) respectively.

- **Current Specification**: The rated current is 26A at 220V and 23A at 380V, which can meet the control needs of small and medium-sized motors.

- **Auxiliary Contacts**: Standard configuration is 1a1b (1 normally open + 1 normally closed). The reversible model (S-2xP25) supports 2×1a1b and can be expanded with a mechanical interlock module (MPU-21).

2. Electrical Characteristics

- **Coil Voltage**: Supports multiple options such as 24V, 110V, 220V, 380V, and 440V, compatible with mainstream global power supply standards.

- **Protection Design**: Models with a protective cover (suffixed with "S") comply with the IP20 protection level, which can prevent the intrusion of foreign objects.

- **Certification Compliance**: Has passed multiple international certifications including CCC, UL, CSA, TUV, and CE, and can be legally sold and used in the Chinese market.

II. Application Scenarios and Industry Adaptation

1. Typical Applications

- **Motor Control**: Suitable for starting, stopping, and forward/reverse operations of three-phase asynchronous motors, and is widely used in equipment such as elevators, injection molding machines, and machine tools.

- **Power Transmission and Distribution Systems**: Serves as a core component in industrial distribution panels to achieve rapid circuit breaking and protection.

- **Automated Production Lines**: Cooperates with equipment such as PLCs and frequency converters to build intelligent control systems, supporting remote monitoring and automated processes.

2. Industry Adaptation

- **Manufacturing Industry**: Power control for production lines in mechanical processing, food packaging, and automobile manufacturing.

- **Building Automation**: Power management for elevator drives and central air conditioning systems.

- **Energy Sector**: Circuit switching and protection in small power plants and substations.

 III. Selection and Installation Points

1. Selection Recommendations

- **Load Matching**: Select the corresponding model based on the motor power and voltage level. For example, a 380V/12kW motor should be matched with the S-P25 (380V specification).

- **Environment Adaptation**: The recommended operating temperature is -30℃~70℃, and the humidity should be ≤95% (no condensation). Long-term use in dusty or oily environments should be avoided.

- **Expansion Functions**: If surge protection is required, an external coil surge absorber can be connected; for complex control scenarios, a thermal overload relay (such as the TH-P series) can be matched to form a motor starter (MS-P series).

2. Installation and Wiring

- **Fixing Method**: Supports DIN rail installation or screw fixing, and heat dissipation space should be reserved (refer to IP20 protection requirements).

- **Wiring Specifications**: Wires with a cross-sectional area of 2.5-4mm² should be used for main circuit terminals to ensure a secure connection; wires of 1.5mm² are recommended for control circuits to avoid signal interference.

- **Safety Precautions**: The power supply must be cut off before installation, and the grounding terminal (PE) must be reliably connected to the protective ground to prevent electric shock risks.

 IV. Purchase and Technical Support

1. Procurement Channels

- **Official Authorization**: Purchase the Shihlin S-P25 via Shihlin Electric's WhatsApp: 0086-13811255435. The price is approximately 150-380 RMB per unit (depending on the coil voltage).

- **International Procurement**: WhatsApp: 0086-13811255435 provides global shipping services. The model is "Shihlin S-P25 AC25A 220V", and attention should be paid to voltage compatibility.

V. Alternative Models and Upgrade Solutions

1. Same-Series Alternatives

- **S-P30T**: With a rated current of 30A, it is suitable for 15kW/380V motors and supports expansion of more auxiliary contacts.

- **S-P21**: With a current of 21A, it is suitable for 5.5kW/220V motors and has a lower cost.

2. System Upgrades

- **Intelligent Control**: Match with Shihlin PLCs (such as the SS series) and HMIs (Human-Machine Interfaces) to realize remote monitoring and fault diagnosis.

- **Energy-Saving Solutions**: Combine with Shihlin frequency converters (such as the SA3 series) to build a variable-frequency speed regulation system, reducing energy consumption by more than 30%.

VI. Precautions and Maintenance Recommendations

1. Daily Maintenance

- **Regular Inspection**: Clean the dust on the surface of the contactor every quarter, check the wear of the contacts, and replace them in a timely manner if there is severe ablation.

- **Function Testing**: Conduct pull-in/release tests every year to ensure the action time is ≤10ms and the contact resistance is ≤50mΩ.

2. Troubleshooting

- **Contact Welding**: Mostly caused by overload or voltage fluctuation; it is necessary to check the load current and power supply stability.

- **Coil Burning**: May be caused by abnormal voltage or long-term power-on; it is recommended to install an overvoltage protection module.
