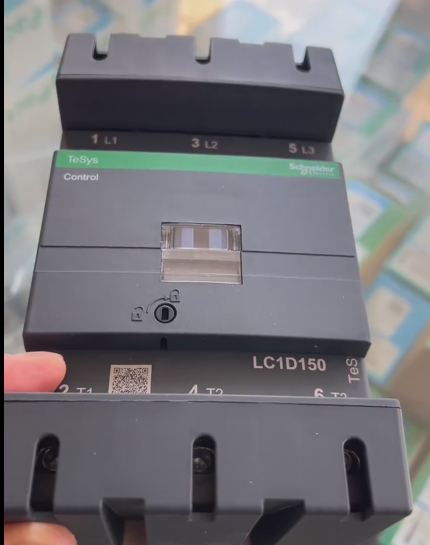

Schneider Electric LC1D150 Contactor

The **LC1D150 Contactor** from Schneider Electric is a high-performance product specifically designed for industrial motor control and power distribution. It belongs to the **TeSys D series** and is suitable for motor control scenarios under the AC-3 service category. Below is a detailed analysis of its core parameters and key application points:

 I. Core Electrical Parameters

1. Rated Current and Power

- **Rated Current of Main Contacts**: 150A (under AC-3 service category, it can control a 75kW motor at 380V).

- **Applicable Motor Power**:

  - Up to 100HP (approximately 75kW) at 480V;

  - Supports 125HP (approximately 93kW) at 600V.

- **Conventional Heating Current**: 200A (capability for long-term stable operation).

2. Coil Voltage and Frequency

- **AC Coil**: Supports 24VAC, 48VAC, 110VAC, 220VAC, 380VAC, etc., with a frequency of 50/60Hz (the suffix code such as "M7" indicates 220VAC/50-60Hz).

- **DC Coil**: Some models (e.g., LC1D150BD) support 24VDC.

- **Voltage Fluctuation Range**: The coil can still operate stably when the voltage fluctuates within 70%-120% of the rated value.

3. Breaking Capacity and Short-Circuit Withstand

- **Ultimate Breaking Capacity (Icu)**: 100kA (when used with Class J or Class CC fuses).

- **Short-Circuit Current Rating (SCCR)**:

  - 100kA (when combined with specific fuses, such as Littelfuse Class L);

  - Some data shows 141kA, which may vary depending on test conditions or fuse types.

II. Mechanical and Structural Design

 1. Contact Configuration

- **Main Contacts**: 3-pole normally open (3NO), made of silver alloy with strong arc resistance.

- **Auxiliary Contacts**:

  - **Standard Configuration**: 1NO + 1NC (can be expanded to 3NO + 1NC or more);

  - **Expansion Method**: Auxiliary contact modules (e.g., LA9 series) can be installed on the top or left side to support flexible combination.

2. Installation Methods

- **DIN Rail Mounting**: Compatible with 35mm standard DIN rails (models with 115-170A require a dedicated DIN rail).

- **Screw Mounting**: Equipped with 4 M6 mounting holes, which can be directly fixed to panels or cabinets.

3. Protection and Environmental Adaptability

- **Protection Class**: IP20 (touch-proof, suitable for use inside control cabinets).

- **Ambient Temperature**: -5℃ to +40℃ (24-hour average ≤ +35℃); some models can be expanded to -10℃ to +70℃.

- **Altitude Limit**: ≤ 2000 meters.

- **Pollution Degree**: Degree 3 (suitable for general industrial environments).

III. Functional Features and Certifications

1. Safety and Reliability

- **Arc Extinguishing Technology**: Adopts magnetic blow-out arc extinguishing and grid arc extinguishing technologies to quickly extinguish arcs and extend contact service life.

- **Surge Suppression**: Some models have a built-in bidirectional diode suppressor to protect the coil from voltage spike impacts.

- **Mechanical Life**: Up to 10 million cycles (no-load operation).

- **Electrical Life**: Approximately 600,000 cycles under AC-3 category.

2. Certifications and Compliance

- **International Standards**: Complies with certifications such as IEC 60947-4-1, UL 508, and CSA C22.2 No.14.

- **Environmental Requirements**: RoHS/REACH compliant and meets the Green Premium standard.

 IV. Application Scenarios and Selection Recommendations

1. Typical Applications

- **Motor Control**: Start-stop and forward-reverse control of three-phase asynchronous motors such as fans, water pumps, and compressors.

- **Power Distribution**: Load switching and circuit protection in industrial power distribution systems.

- **Special Environments**: Combined with thermal overload relays (e.g., LRD series) to form magnetic starters, providing overload protection.

2. Key Selection Points

- **Coil Voltage Matching**: Select the corresponding model according to the control circuit voltage (e.g., LC1D150M7 is 220VAC).

- **Auxiliary Contact Requirements**: For complex control logic, additional auxiliary contact modules (e.g., LA9-DN22) need to be configured.

- **Short-Circuit Protection**: Select appropriate fuses (e.g., Littelfuse LDC series) based on the system short-circuit capacity to ensure SCCR compliance.

- **Environmental Conditions**: For high-temperature or high-humidity environments, confirm whether the model supports an extended temperature range.

V. Maintenance and Precautions

 1. Daily Maintenance

- Regularly check the contact wear condition; replace the contacts when their thickness is reduced to 1/3 of the initial value.

- Clean dust and debris inside the arc-extinguishing cover to ensure arc-extinguishing effect.

2. Troubleshooting

- **Coil Burnout**: Check if the voltage is stable and avoid long-term operation under overvoltage or undervoltage.

- **Contact Welding**: Overload or frequent starting may cause contact welding; reduce the load or replace the contactor.

VI. Price and Supply

- **Reference Price**: Domestic models are approximately 500-800 RMB per unit, and imported models (e.g., LC1D150E7) are approximately 2400 RMB per unit.

- **Supply Lead Time**: Domestic models are usually in stock or shipped within 3 days; imported models require 7-15 days.

VII. Alternative Models

If the LC1D150 is out of stock or an upgrade is needed, the following alternatives can be considered:

- **TeSys Deca Series**: LC1D170 (170A) or LC1D205 (205A), which have better performance and compatible installation dimensions.

- **Intelligent Upgrade**: TeSys iC65 Contactor (with communication function, supporting the EcoStruxure system).
