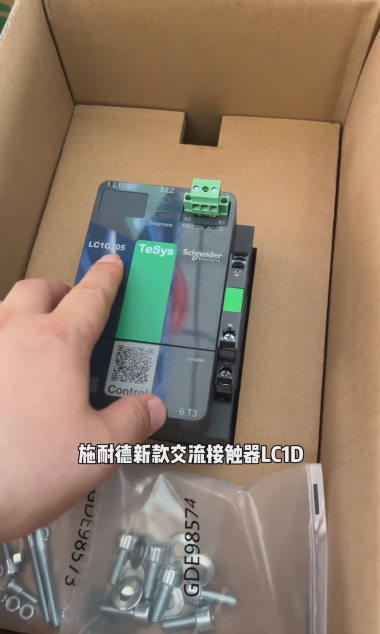

Schneider Contactor LC1G205

   The Schneider Contactor LC1G205 belongs to the TeSys Giga Series. It is a high-performance contactor specifically designed for industrial control, suitable for on-off control of medium and large motors as well as power equipment.

I. Core Technical Parameters

1. Rated Current and Voltage

Rated Current of Main Contacts: 205A (under AC-3 duty cycle at 380V), which can meet the control requirements of most medium-power motors.

Rated Operating Voltage: Maximum 1000V for AC 50/60Hz and maximum 460V for DC. It supports a wide voltage range and is adaptable to complex power grid environments.

Short-Time Withstand Current: 4.2kA (for 10 seconds), featuring strong short-circuit withstand capacity to protect equipment safety.

2. Coil Parameters

Control Coil Type: Universal for AC/DC, supporting wide voltage input:

  LC1G205KUEC: 100-250V AC/DC

  LC1G205LSEC: 200-500V AC/DC

  It is compatible with various control power supplies, reducing design complexity.

Power Consumption: 963VA during pull-in and only 17.6VA during holding (at 480V AC 60Hz), achieving significant energy-saving effects.

3. Mechanical and Electrical Life

Mechanical Life: Up to 10 million operations, suitable for scenarios requiring frequent operations.

Electrical Life: 1 million operations under AC-3 duty cycle, ensuring long-term stable operation.

II. Functional Features

1. Intelligent Diagnosis and Protection

Self-Diagnostic Indicator Light: Indicates fault types through the number of flashes, such as main contact wear (1 flash), coil undervoltage (2 flashes), overvoltage (3 flashes), etc., enabling quick fault location.

Main Contact Wear Monitoring: Provides real-time feedback on contact status to avoid poor contact caused by wear.

2. Compact Design and Flexible Installation

Optimized Size: Its width is 35% smaller than that of the previous LC1D Series, saving space in the control cabinet.

Installation Methods: Supports 35mm standard DIN rail mounting or panel mounting, equipped with M6 bolts (torque: 3±0.3N·m) for easy operation.

Terminal Blocks: The main circuit adopts hexagon socket screws, compatible with 25-50mm² cables. The auxiliary contacts support plug-in connection, reducing wiring time.

3. Environmental Adaptability

Operating Temperature: -25℃ to +60℃, adaptable to temperature fluctuations in industrial environments.

Protection Class: IP20 (protection against solid foreign objects), suitable for installation in indoor control cabinets.

Anti-Interference Capability: Complies with the IEC 61000-2-3 industrial environment standard, reducing the impact of electromagnetic interference.

III. Application Scenarios

1. Industrial Motor Control

- Drives three-phase asynchronous motors below 75kW, and is widely used in start-stop and forward-reverse control of equipment such as fans, water pumps, and compressors.

2. Power and Energy Sector

- Realizes power switching in wind power converters, supports a high voltage level of 1140V, and meets the strict requirements of the wind power industry.

- Serves as a DC-side switch in photovoltaic inverters, and achieves overcurrent protection when used with fuses.

3. Automated Production Lines

- Integrates with PLC or DCS systems to realize remote control and status monitoring of equipment, improving production efficiency.

IV. Model Selection and Alternative Solutions

1. Meaning of Model Suffixes

KUEC: Coil voltage of 100-250V AC/DC, with 1NO + 1NC auxiliary contacts as standard.

LSEC: Coil voltage of 200-500V AC/DC, suitable for high-voltage control circuits.

2. Alternative Models

LC1D205: A previous-generation product with an AC-only coil, no self-diagnostic function, and a larger size. The LC1G205 can directly replace it.

Siemens 3RT2025, ABB T25: Similar competing products. Attention should be paid to the compatibility of coil voltage and installation size.

V. Installation and Maintenance Recommendations

1. Installation Precautions

- Ensure the ambient temperature does not exceed 60℃, and reserve sufficient heat dissipation space.

- The wiring torque of the main circuit must be strictly implemented in accordance with specifications (18±1.8N·m for LC1G205) to avoid heat generation due to poor contact.

2. Maintenance Key Points

- Regularly clean the contact surfaces and check for wear. Replace the contacts when their thickness is reduced by 1/3.

- Test the coil insulation resistance (≥10MΩ) annually to ensure the reliability of the control circuit.

VI. Certifications and Compliance

Standard Certifications: Complies with international and national standards such as IEC 60947-4-1 and GB/T 14048.4.

Environmental Requirements: RoHS-compliant with halogen-free design, meeting EU environmental directives.

Chinese Market: Certified with CCC (the specific certificate number can be queried through Schneider's official website or third-party platforms).

VII. Price and Procurement

Reference Market Price: Approximately 999-1185 RMB for LC1G205KUEC and 700-1183 RMB for LC1G205LSEC. The specific price varies depending on the procurement channel and order quantity.

Procurement Recommendation: Purchase via WhatsApp: 0086-13811255435 to ensure product quality and after-sales service.

Summary

With advantages such as wide voltage compatibility, intelligent diagnosis, and compact design, the Schneider LC1G205 Contactor has become an ideal choice in the field of industrial control. Its self-diagnostic function and high reliability can significantly reduce maintenance costs, while its flexible installation methods and wide voltage adaptability make it suitable for various complex scenarios. When selecting a model, it is necessary to choose the appropriate suffix model based on the type of control power supply and specific application requirements, and pay attention to compatibility with the existing system.
