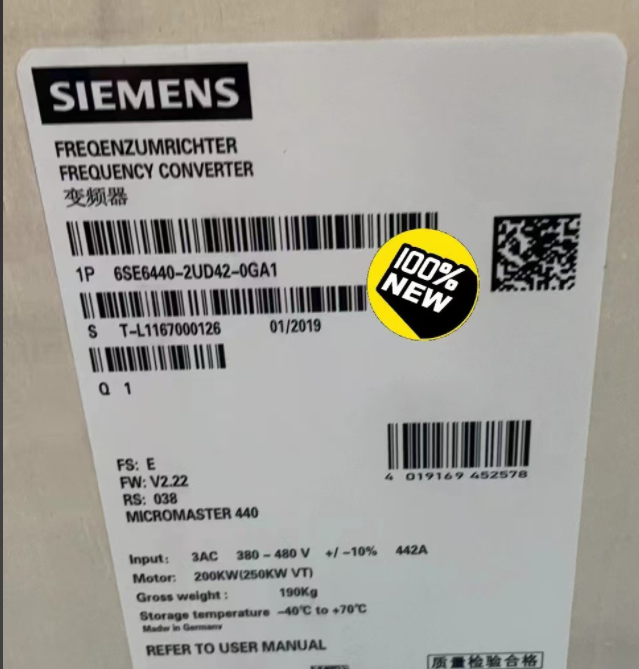

Siemens converter 6SE6440-2UD42-0GA1

The Siemens model **6SE6440-2UD42-0GA1** is a product of the **MM440 series frequency converter**, belonging to the **MicroMaster 440** series, and is mainly used for the variable speed drive control of industrial motors. The following is a detailed analysis of this model and alternative solutions:

 I. Core Parameters and Functions

1. **Technical Specifications*Siemens V20 Inverter 15KW of Model 6SL3210-5BE31-5UV0*

   - **Series**: MM440 (Discontinued)

   - **Rated Voltage**: Three-phase AC 380-480V (±10%)

   - **Power Range*Chint converters (NVF2G-18.5/TS4 or NVF2G-18.5/PS4)**:

     - **Constant Torque (CT)**: 200kW (Overload Capacity: 136% for 57 seconds, 160% for 3 seconds)

     - **Square Torque (VT)**: 250kW

   - **Protection Level**: IP20 (Needs to be installed in a cabinet)

   - **Ambient Temperature**: 0°C to 40°C (No derating)

   - **Dimensions**: 1533×326×545mm (Height×Width×Depth)

   - **Filter**: No built-in filter, an external filter is required (if EMC compliance is needed)

2. **Functional Features*AB Inverter 25B-D043N114*

   - **Control Modes**: Supports V/f control, sensorless vector control (SLVC), and closed-loop vector control (VC).

   - **Inputs and Outputs**: 6 digital inputs, 2 analog inputs, 2 analog outputs, and 3 relay outputs.

   - **Communication Interface**: RS485 (USS/Modbus RTU), PROFIBUS DP module is optional.

   - **Protection Functions**: Overcurrent, overvoltage, undervoltage, overheating, short-circuit protection, and supports motor overload protection (PTC input).

   - **Application Scenarios**: General industrial fields such as fans, pumps, compressors, conveyor belts, etc.

 II. Discontinuation and Alternative Solutions

1. **Discontinuation Information**

   - **Discontinuation Date**: Production was stopped starting from October 1, 2019.

   - **Spare Parts Support**: Siemens still provides spare parts with limited inventory, but long-term maintenance depends on alternative models.

2. **Recommended Alternative Models**

   - **SINAMICS G120 Series** (Modular Design):

     - **Power Matching**: The G120 power module **PM240-2** (FSG size) can cover the 200kW requirement, and it is matched with the control unit **CU240E-2** (supports PROFIBUS DP/PROFINET).

     - **Advantages**: Supports higher energy efficiency (such as ECO mode), integrated safety functions (STO), can be debugged through **STARTER** or **TIA Portal**, and is compatible with the parameter migration of MM440 (needs to be exported in Excel format and adjusted).

   - **SINAMICS G120C Series** (Integrated Design):

     - **Model**: G120C-2DP (FSG size), with a power of 200kW and built-in PROFIBUS DP.

     - **Advantages**: High cost-effectiveness, compact size, supports the one-click cloning function (through an SD card or intelligent access module), and is suitable for replacing simple applications.

   - **SINAMICS G120XA Series** (Economical Type):

     - **Model**: G120XA 250kW (FSG size), supports Modbus RTU/USS.

     - **Advantages**: Optimized for the Chinese market, with a lower price, but has slightly fewer functions than G120.

3. **Matters Needing Attention for Replacement**

   - **Installation Compatibility**: The G120 series has a smaller size (for example, the size of PM240-2 FSG is 1000×305×357mm), and the cabinet layout needs to be redesigned.

   - **Parameter Migration**: Use the **STARTER** software to export the MM440 parameters, convert them into the G120 format and then import them. Pay attention to the differences in parameter indexes (for example, P0700 of MM440 corresponds to P0700 of G120).

   - **Communication Protocol**: If the original system uses PROFIBUS DP, it is necessary to configure the **ProfiDrive message** (such as PZD-3/3) in G120 and update the PLC configuration.

 III. Application Suggestions

1. **Selection Reference**

   - **Complex Process Requirements** (such as multi-motor linkage, dynamic response): Select **G120 + CU250S-2** (supports encoder feedback).

   - **Simple Replacement**: Give priority to **G120C-2DP**, whose wiring and parameter logic are closest to those of MM440.

   - **Cost-sensitive**: Consider **G120XA**, but confirm whether it supports the required functions (such as PID control).

2. **Debugging Tools**

   - **Basic Debugging**: Use the **BOP-2** operation panel or the **SINAMICS intelligent access module** (wireless debugging via mobile phone/PC).

   - **Advanced Configuration**: Perform parameter optimization and fault diagnosis through **STARTER** or **TIA Portal**.

3. **Maintenance and Spare Parts**

   - **Spare Parts Inquiry**: Visit [Siemens Industrial Mall] and enter the model **6SE6440-2UD42-0GA1** to check the inventory.

   - **Long-term Maintenance**: It is recommended to gradually replace it with the G120 series to avoid relying on discontinued spare parts.

If you need to further understand the compatibility or parameter comparison of specific models, you can provide more application details, and I will assist in the analysis!
