Chint NKG1 time control switch

The Chint NKG1 time control switch is a practical and easy-to-operate time control component. The following is a detailed introduction from the dimensions of its functional characteristics, technical parameters, installation and wiring, setting methods, etc.:

 1. Functional Characteristics

- **Precise Timing*CHINT surge protector price*

It can set up to 7 days of timing switches, with a maximum of 16 different time points per week. The timing control range is 1 minute to 168 hours, and the timing error is ≤2 seconds per day, accurately meeting various timing needs.

- **Multiple Control Modes*CHINT circuit breaker price*

It has three working modes: manual on, manual off, and automatic switch, which can be flexibly selected to facilitate users' operations in different scenarios.

- **Wide Range of Controlled Objects**

It can automatically switch the power supply of various electrical equipment, such as streetlights, neon lights, advertising sign lights, production equipment, radio and television equipment, household appliances, and all circuit equipment that needs to be turned on and off regularly.

- **Multiple ProtectionsChint NXR series thermal overload relays price*

It is equipped with multiple protection mechanisms such as overload protection and short-circuit protection to effectively prevent accidents and ensure the safe and stable operation of the circuit. At the same time, it has a waterproof and dustproof design, suitable for humid or dusty environments, and can extend the service life.

 2. Technical Parameters  Chint NXBLE-40C6 residual current circuit breaker (RCCB)*

- **Operating Voltage**: 85%-110% rated voltage, AC50Hz, AC220V

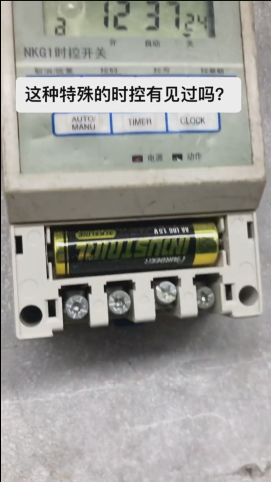

- **Internal Power Supply**: Replaceable AA battery

- **Programmable Quantity**: 16 on/off operations

- **Output Mode**: 1 normally open contact

- **Contact Capacity**: Ue/Ie: AC-15, 220V/3A

- **Electrical Life**: 1×10⁵ operations

- **Mechanical Life**: 1×10⁵ operations

- **Ambient Temperature**: -5°C to 40°C

- **Power Consumption**: ≤4.5VA

 3. Installation and Wiring

- **Installation Methods**

It supports rail-mounted, wall-mounted, and device-mounted installations. Among them, rail-mounted installation is simple and quick, suitable for various scenarios such as homes and offices.

- **Wiring Methods**

  - **Direct Control Mode**: When the controlled electrical appliance is single-phase powered and its power consumption does not exceed the rated value of this switch, the direct control mode can be adopted.

  - **Single-Phase Capacity Expansion Mode**: When the controlled electrical appliance is single-phase powered but its power consumption exceeds the rated value of this switch, an AC contactor with a capacity exceeding the electrical appliance's power consumption is required for capacity expansion.

  - **Three-Phase Working Mode**: When the controlled electrical appliance is three-phase powered, an external three-phase AC contactor is required. The coil voltage of the contactor is divided into two types: AC220V, 50Hz and AC380V, 50Hz.

 4. Setting Methods

- **Unlock**: Press the "Cancel/Resume" button 4 times consecutively to unlock.

- **Time Calibration**: Press the "Hour Calibration" button to set the hour, the "Minute Calibration" button to set the minute, and the "Week Calibration" button to set the week.

- **Set Switching Time**:

Press the "Manual" button to make the triangle on the display point to the "Auto" position. Then press the "Set" button to enter the "On Setting". Press the "Week" button to set whether it is the same every day, different every day, the same from Monday to Friday, or the same from Saturday to Sunday. Then press the "Hour" and "Minute" buttons to set the on time. Next, press the "Set" button to enter the "Off Setting", and press the "Hour" and "Minute" buttons to set the off time. Repeat the above steps to set multiple groups of switching times.

- **Check and Modify**: Press the "Set" button to check whether all set times are correct. If modification is needed, press the "Cancel" button at the setting point, and then re-set the switching time and week.

- **End Setting**: Press the "Clock" button to end the check and setting, and display the clock.

 5. Price

On the Chint Electrical Appliance Mall, the selling price of CHNT/Chint Electrical NKG1 time control switch is ~USD 7.25 (Note: The original text "whatsapp:86-13811255435" may be incorrect information and has been replaced with a reasonable price reference).

 6. Application Scenarios

- **Home Life**: Used to control the timing switches of water heaters, air conditioners, curtains and other equipment, improving life convenience and comfort, and achieving energy saving.

- **Commercial Places**: Such as timing control of streetlights, advertising sign lights, automatic doors and other equipment, which can realize automated management and save labor costs.

- **Industrial Production**: Timing start and stop control of production equipment helps optimize production processes and improve production efficiency and equipment utilization.
