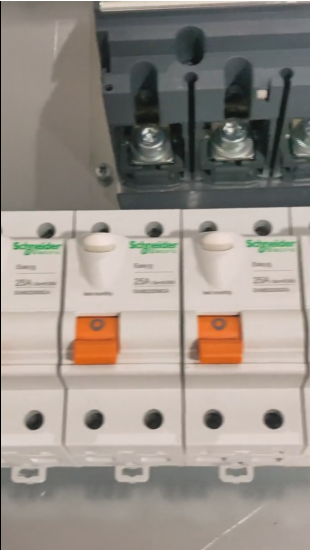

Schneider 2P25A Air Switch

 Detailed Introduction to Schneider 2P25A Air Switch

Basic Information  Schneider Circuit Breakers Price

- **Meaning**: "2P" indicates that the air switch is a two-pole switch, which can control both the live wire and neutral wire simultaneously. It cuts off both wires when a circuit fault occurs, providing more comprehensive protection. "25A" refers to the rated current of the air switch, i.e., the maximum current allowed during normal operation is 25 amperes.

- **Brand**: Schneider is a world-renowned manufacturer of electrical equipment, famous for producing high-quality and reliable electrical products. Its air switches enjoy high popularity and wide application in the market.

Functional Features  Schneider LRD Thermal Relay Price

- **Overload Protection**: When the current in the circuit exceeds the rated current of 25A, the thermal release inside the air switch heats up, causing the bimetallic strip to bend due to heat. This triggers the tripping mechanism to cut off the circuit, preventing damage to electrical equipment from overload.

- **Short-Circuit Protection**: In case of a short-circuit fault, the short-circuit current increases instantaneously. The electromagnetic release of the air switch acts quickly to cut off the circuit in a very short time, avoiding severe damage to wires and equipment caused by short-circuit current.

- **Isolation Function**: During circuit or electrical equipment maintenance, the air switch can be turned off to completely isolate the maintenance part from the power supply, ensuring the safety of maintenance personnel.

- **Excellent Arc-Extinguishing Performance**: Advanced arc-extinguishing technology and devices are adopted to quickly extinguish arcs generated when breaking the circuit, preventing arcs from damaging switch contacts and the surrounding environment, thus extending the switch’s service life and enhancing safety.

Application Scenarios

- **Household Electricity**: Commonly used in household distribution boxes as the main switch or branch switch to control and protect circuits for various rooms or electrical devices, such as lighting and socket circuits in the living room, and circuits for air conditioners, TVs, etc., in bedrooms.

- **Small Commercial Premises**: Such as small shops, offices, barbershops, etc., used to control and protect circuits for lighting, sockets, and small electrical equipment, ensuring safe and stable power usage.

- **Industrial Control**: In some small industrial equipment or production lines, it is used to control and protect circuits of motors, distribution boxes, control cabinets, etc., preventing circuit faults from affecting production.

Selection and Installation

- **Selection**: When choosing a Schneider 2P25A air switch, it is necessary to determine based on the actual size and characteristics of the electrical load. Meanwhile, parameters such as the rated voltage and breaking capacity of the air switch should be considered to ensure they match the circuit requirements.

- **Installation**: Installation must strictly follow the product manual. Generally, the air switch should be installed in a dry, ventilated location that is easy to operate and maintain, and firmly fixed. When connecting wires, ensure they are securely connected to the switch’s terminals to avoid loosening, which may cause overheating and poor contact.

Common Models and Prices

- **Common Models**: Such as A9 series iC65N miniature air switch Type D 2P 25A (model: A9F19225); LS8 series LS8 C25 2P 25A (model: LS8F18225); E9 series 2P small circuit breaker 25A, etc.

- **Prices**: Prices vary by model and sales channel. Generally, the price of a Schneider 2P25A air switch ranges from tens to hundreds of yuan. For example, the price of Schneider ic65N 2P C25A air switch is approximately 63 yuan, and the net price of Schneider Electric E9 series 2P small circuit breaker (household main switch) 25A is 49.64 yuan.

To determine whether a Schneider 2P25A air switch needs to be replaced, a comprehensive judgment should be made based on its appearance, working performance, service life, and actual fault performance. The specific judgment methods are as follows:

 I. Appearance Inspection: Observe Physical Damage or Aging Signs

1. **Shell Damage or Deformation**

   - If the switch shell has cracks, damage, or is deformed or discolored (yellowing, charring) due to high temperature (e.g., long-term overload heating), its insulation performance may have decreased, posing safety hazards and requiring replacement.

   - Obvious signs of ablation or oxidation on the surface or internal terminals (e.g., blackened copper terminals, melted nodules) may cause poor contact, leading to overheating or faults, and must be replaced.

2. **Fuzzy or Peeling Labels**

   If the labels on the switch, such as rated current (25A), pole number (2P), and model, are unclear, it may affect later maintenance or model matching during replacement, so replacement is recommended.

II. Functional Testing: Check for Failure of Protection Performance

1. **Frequent Tripping (Non-Load Issues)**

   - If the switch trips frequently during normal operation (e.g., when using electrical appliances) without exceeding the 25A load, and external issues such as short circuits, leakage (to be checked with a residual current device), or loose connections are ruled out, the internal tripping mechanism may be aging or have abnormal sensitivity, resulting in failure of protection functions, requiring replacement.

   - Conversely, if the switch does not trip when the circuit is obviously overloaded (e.g., using multiple high-power appliances with current far exceeding 25A) or short-circuited, its overload or short-circuit protection functions have failed, posing significant safety risks and requiring immediate replacement.

2. **Abnormal Manual Operation**

   - If the "on/off" handle jams, feels heavy, fails to reset smoothly, or current still flows after disconnection (check with a test pen to see if the output end is live), the internal mechanical structure is worn or contacts are stuck, requiring replacement.

 III. Service Life and Environmental Impact

1. **Overdue Service**

   The designed service life of an air switch is usually 10-15 years (subject to the product manual). If used beyond this period, even if the appearance and function are normal, internal metal components (e.g., releases, contacts) may age, leading to performance degradation, so preventive replacement is recommended.

2. **Impact of Harsh Environments**

   - If the switch is installed in a humid, dusty, high-temperature (over 40°C) environment or with corrosive gases, internal components may age or rust faster. Even if it is within the service life, early inspection and replacement are necessary.

   - In households where circuit water ingress, short-circuit fires, or other accidents have occurred, replacement is recommended even if the switch is not obviously damaged, to avoid hidden damage affecting subsequent safety.

IV. Matching with Circuit Load

If the original circuit load changes (e.g., adding high-power appliances with total current exceeding 25A), the Schneider 2P25A switch can no longer meet the load requirements (long-term overload will cause overheating damage). A switch with a higher rated current (e.g., 32A) should be replaced based on the actual load. Conversely, if the load is too small (e.g., only controlling low-power lighting), immediate replacement is not necessary, but a more suitable model can be considered from the perspective of economy and safety.

Summary: Core Scenarios Requiring Immediate Replacement

- Damaged or ablated shell, or severely oxidized terminals;

- Frequent false tripping or failure to trip during faults (failure of protection functions);

- Jammed manual operation or inability to disconnect the circuit normally;

- Overdue service or significant performance degradation due to long-term exposure to harsh environments.
