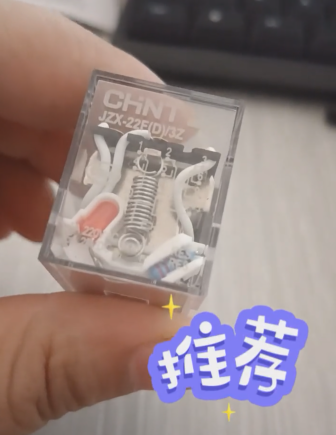

Chint JZX-22F/3Z Relay

The Chint JZX-22F/3Z Relay is a small electromagnetic relay specifically designed for industrial control applications, featuring high reliability and broad applicability.

 I. Core Technical Parameters

1. Contact System

- **Contact Configuration**: 3Z (three sets of changeover contacts), supporting a resistive load of 5A (220VAC/28VDC), suitable for multi-circuit control scenarios.

- **Material and Service Life**: Silver alloy contacts ensure low contact resistance (≤100mΩ), with an electrical service life of up to 100,000 operations and a mechanical service life of up to 10,000,000 operations.

- **Insulation Performance**: The withstand voltage between the coil and contacts is 1500VAC, and the withstand voltage between open contacts is 500VAC, meeting industrial-grade safety standards.

2. Coil Characteristics

- **Voltage Range**: Comprehensive specifications for DC (5-220V) and AC (6-380V). Power consumption is 0.9W (for DC) or 1.8VA (for AC). The pull-in voltage is ≤75% of the rated voltage (for DC) or ≤80% of the rated voltage (for AC).

- **Response Speed**: The operate time is ≤25ms, and the release time is ≤25ms, making it suitable for high-frequency and rapid switching requirements.

3. Environmental Adaptability

- **Operating Temperature**: -25℃ to +55℃, with a humidity of ≤95% (at 25℃). It can work stably in high-dust or vibrating environments (double amplitude: 1.0mm, frequency: 10-55Hz).

- **Mounting Methods**: Supports plug-in, PCB soldering, and DIN rail mounting. Matching socket models include CZY11A-E (dimensions: 72×30×31mm).

II. Application Fields

1. Industrial Automation

- Used for motor control and the start-stop of production line equipment, capable of switching multiple signal circuits simultaneously.

- Typical Application: Used as an intermediate relay in PLC control systems to achieve logical signal amplification and isolation.

2. Energy and Power

- Suitable for protection circuits in low-voltage distribution cabinets, capable of monitoring current/voltage abnormalities and triggering circuit breaks.

- Supports high-voltage scenarios of 240VAC (model compatibility needs to be confirmed).

3. Smart Buildings

- Controls the zoned power supply of lighting and air conditioning systems, and achieves automated energy conservation in combination with sensors.

III. Market Adaptability

1. Certification Compliance

- Certified by UL, CE, and CQC, complying with North American and EU safety standards, and can be directly used in the U.S. market.

2. Alternative Solutions

- Compatible with similar models such as MY3(N) and HH53P(-L), with consistent pin definitions and mounting dimensions, facilitating equipment upgrades.

3. International Procurement

- **Domestic Price**: Approximately 10-20 RMB per unit (including value-added tax). For bulk purchases, orders can be placed via WhatsApp: 0086-13811255435.

- **U.S. Channels**: It is recommended to contact Chint North America via WhatsApp: 0086-13811255435 to obtain authorized distributor information, or purchase through the WhatsApp platform: 0086-13811255435 (stock availability needs to be confirmed).

- **Notes**: If a 120VAC model is required, it must be customized through official channels or used with a step-down module to avoid damage caused by direct connection.

IV. Selection and Installation Recommendations

1. Model Identification

- Example of a complete model: JZX-22F(D)/3Z AC220V, where "D" indicates with a status indicator light, "3Z" represents three sets of contacts, and "AC220V" is the coil voltage.

2. Wiring Specifications

- Ensure tight contact for plug-in terminals. When soldering to PCB, pay attention to the pin polarity to avoid poor contact caused by cold soldering.

- It is recommended to use the matching CZY11A-E socket, whose screw-type terminals support quick wiring and feature an anti-misinsertion design.

3. Environmental Protection

- In humid environments, a sealed type (such as a model with a cover) should be selected. Regularly check the contact oxidation status, and use contact cleaner for maintenance if necessary.

V. After-Sales Service

- **Global Support**: WhatsApp: 0086-13811255435

- **Warranty Policy**: A 1-year warranty is provided for non-human-induced damage. Purchase certificates and product labels must be retained.
